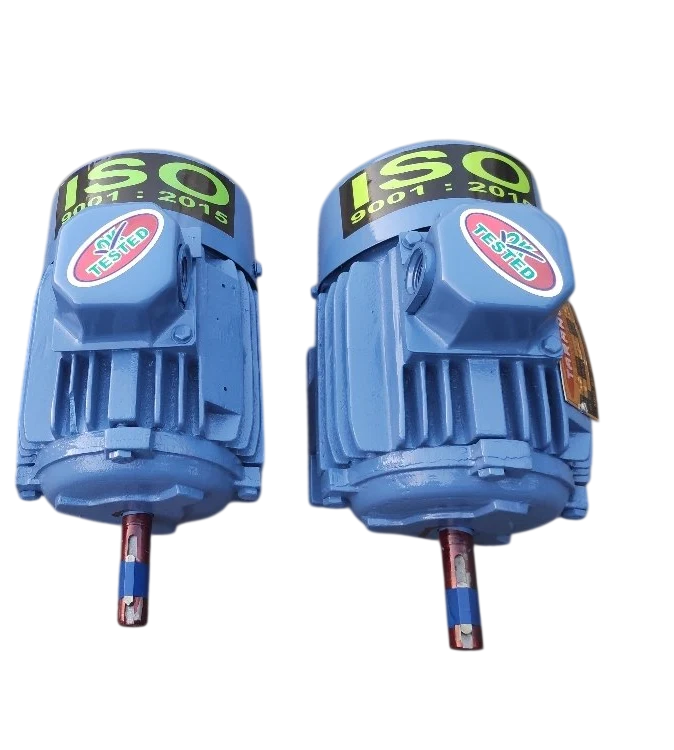

Single Phase Induction Motors

Name: Single Phase Motors
Brand: TARANG ENGINEERING
Price: 4500 INR
Availability: InStock

Price 4500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Single Phase Induction Motors Specification

Power Rating
0.25 HP-5 HP

Features
High Efficiency, Robust Construction, Low Maintenance

Efficacy
IE2/IE3 Efficiency Class

Torque
Standard Torque

Pressure
Atmospheric

Rated Voltage
230 V

Current Type
AC

Noise Level
<65 dB

Sealed Type
Totally Enclosed

Poles Number
2/4

Starting Type
Capacitor Start

Cooling Method
Air Cooled

Ambient Temperature
-15C to 50C

Horse Power
0.25 HP to 5 HP

Voltage
220-240 V

Rated Frequency
50 Hz

Standard
IS 996, IS 325

Bearing Type
Ball Bearing

Motor Type
Induction Motor

Product Type
Single Phase Motor

Output Power
0.25 HP to 5 HP

Frequency (MHz)
50 Hertz (HZ)

Protect Feature
Thermal Overload Protection

Phase
Single Phase

Speed
1440 RPM / 2880 RPM

Power
220 Volt (v)

Color
Blue/Grey

Dimension (L*W*H)
Standard (Varies as per Model)

Weight
5 kg to 40 kg

Shaft Diameter
Standard (as per power rating)

Mounting Type
Foot Mounted

IP Rating
ip44

Service Factor
1.0 to 1.15

Insulation Class
Class B/F

Frame Size
63 to 112

Enclosure
TEFC (Totally Enclosed Fan Cooled)

Thermal Class
155 (F)

Duty Type
S1 (Continuous) & S2

Application
Pumps, Compressors, Fans, Agricultural Machinery, Industrial Equipment

Single Phase Induction Motors Trade Information

Minimum Order Quantity
1 Number

Supply Ability
10 Per Day

Delivery Time
2 Days

Main Domestic Market
All India

About Single Phase Induction Motors

Discover our First-class Single Phase Motors, a Hot deal engineered for World-class performance with frame sizes 63 to 112. Benefit from Reduced prices-Order Today! These Meritorious motors meet IE2/IE3 efficiency and conform to IS 996 & IS 325 standards, making them suitable for pumps, compressors, fans, agricultural machinery, and industrial equipment. Equipped with TEFC enclosure, S1/S2 duty, and thermal overload protection, they ensure robust construction, low maintenance, and high efficacy. Available in Blue/Grey, these motors offer reliable atmospheric pressure operation and support a wide voltage range (220-240V), power (0.25 HP-5 HP), and both 2/4 poles.

Competitive Advantages & Areas of Application

Our Single Phase Motors stand out due to their outstanding energy efficiency, sturdy build, and low-noise operation (<65 dB). Suitable for continuous (S1) and short-term (S2) duty cycles, they feature robust thermal protection and are ideal for use in pumps, compressors, fans, agricultural machinery, and industrial equipment. Designed to perform in harsh environments, they are perfect for installations requiring reliable and sustained operation across agriculture and industry.

Payment Terms, Packaging Details & Domestic Supply

We offer flexible payment terms to suit your procurement requirements. Each motor is securely packaged to ensure safe transportation and timely dispatched to your location. Our main domestic market encompasses the entire region of India, ensuring prompt supply and streamlined logistics for your convenience. Our reliable distribution network guarantees that every order reaches you in flawless condition, ready for quick installation and commissioning.

FAQ's of Single Phase Motors:

Q: How can I order these Single Phase Motors and what are the available models?

A: You can order our motors directly from our authorized suppliers or contact our sales team in India. We offer various frame sizes from 63 to 112 and power ratings between 0.25 HP and 5 HP. Please specify your application to receive a tailored recommendation.

Q: What are the main applications of these motors?

A: Our Single Phase Motors are designed for multiple uses such as pumps, compressors, fans, agricultural machinery, and industrial equipment, making them ideal for both agricultural and industrial settings.

Q: When can I expect my order to be dispatched after placement?

A: Once payment is confirmed, orders are typically processed and dispatched within a few business days, depending on stock availability and transportation schedules.

Q: Where are these motors primarily supplied within India?

A: Our distribution covers the main domestic market throughout India, ensuring timely supply and support across various states and regions.

Q: What process ensures the reliability of these motors?

A: Each motor undergoes stringent testing for quality control, compliant with IS 996 and IS 325 standards, and features robust thermal overload protection for enhanced safety and durability.

Q: How does thermal overload protection benefit motor usage?

A: Thermal overload protection prevents damage from overheating, increasing the motor's lifespan, and ensuring safe, uninterrupted operation during demanding applications.
