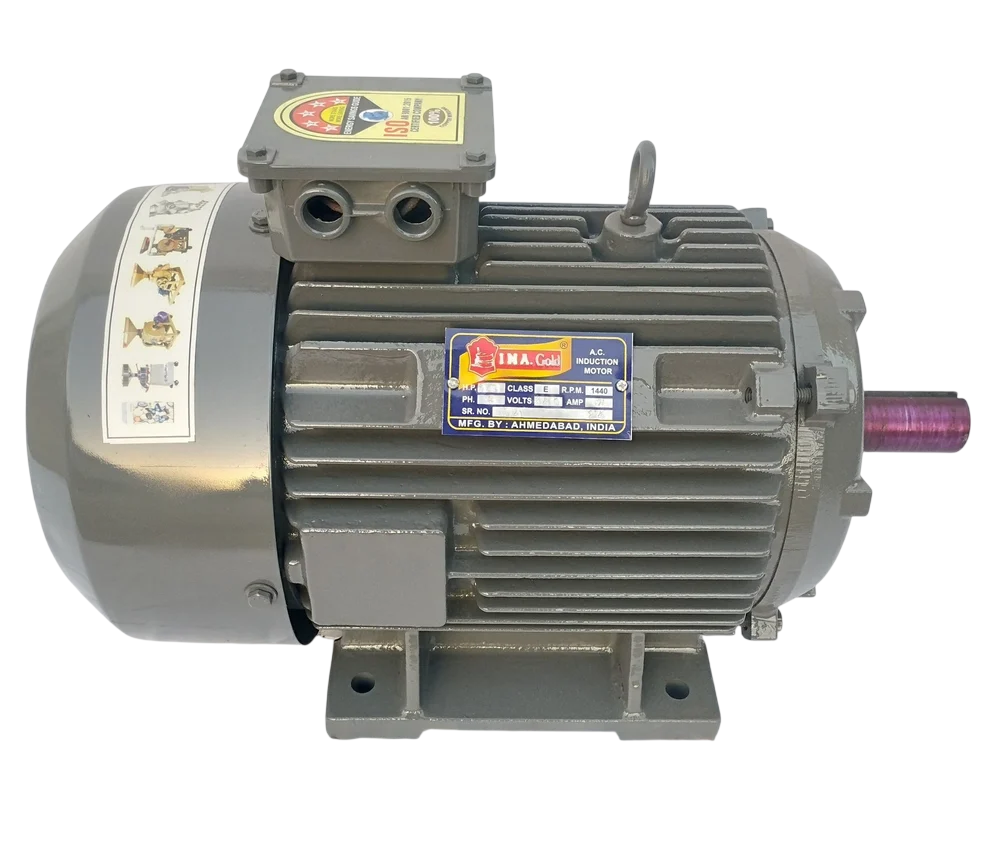

Three Phase Induction Motor

Name: Three Phase Motor
Brand: TARANG ENGINEERING
Price: 15000 INR
Availability: InStock

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Three Phase Induction Motor Specification

Horse Power
2 HP

Rated Voltage
415 V

Cooling Method
IC411 (Self Ventilated)

Torque
9.95 Nm

Ambient Temperature
-15C to 40C

Sealed Type
IP55

Noise Level
65 dB

Pressure
High Pressure

Motor Type
Induction Motor

Bearing Type
Double Sealed Ball Bearing

Efficacy
High Efficiency

Standard
IS:325

Current Type
AC

Rated Frequency
50 Hz

Features
Corrosion Resistant, Low Maintenance

Power Rating
1.5 kW

Poles Number
4

Voltage
415 V

Starting Type
Direct On Line (DOL)

Product Type
Three Phase Motor

Output Power
2 HP

Frequency (MHz)
50 Hertz (HZ)

Protect Feature
Totally Enclosed

Phase
Three Phase

Speed
1440 RPM

Power
1.5 kW

Color
Blue

Dimension (L*W*H)
340 x 200 x 270 mm

Weight
42 kg

Shaft Diameter
28 mm

Mounting Type
Foot Mounted

IP Rating
IP55

Frame Size
112M

Duty Cycle
S1 (Continuous)

Service Factor
1.15

Insulation Class
Class F

Three Phase Induction Motor Trade Information

Minimum Order Quantity
1 Number

Supply Ability
10 Per Day

Delivery Time
2 Days

Main Domestic Market
All India

About Three Phase Induction Motor

Owing to excellent performance, noiseless running, high efficiency, power saving, and durability of our presented 10 HP Three Phase Induction Motors we are facing its huge demand in different commercial and industrial machines & equipment. Powered by 3 phase electric power, it is well housed in painted coated cast iron body to ensure its low vibration working and sturdy construction. Engineered with 440V voltage, 10 HP Three Phase Induction Motors are easy to install, rust proof, and can be availed competitive prices.

Product details

Power Source	Electric
Surface Finish	Paint Coated
Rated Power	10 HP
Voltage	440 V
Material	Cast Iron
No Of Phase	Three Phase

Engineered for Longevity and Performance

Designed with Class F insulation and a service factor of 1.15, this induction motor provides exceptional durability and continuous performance. Its robust construction minimizes maintenance needs and suits high-pressure operations. Double sealed ball bearings and a corrosion-resistant body ensure extended service life in challenging environments.

Optimized for Industrial Efficiency

Delivering 2 HP output at 1440 RPM with high efficiency, this motor is well-suited for applications where reliability is key. Its IP55 protection class and IC411 self-ventilated cooling enable the motor to perform efficiently in harsh industrial settings while ensuring minimal noise and thermal protection.

FAQ's of Three Phase Motor:

Q: How should this three phase induction motor be installed for optimal performance?

A: This motor should be foot-mounted on a stable surface, ensuring proper alignment with the driven equipment. Adequate ventilation around the IC411 cooling system and secure electrical connections at 415V/50Hz are necessary for optimal performance.

Q: What are the main benefits of the IP55 totally enclosed design?

A: The IP55 totally enclosed construction protects the motor from dust, water jets, and environmental contaminants, making it suitable for harsh and high-pressure industrial applications and extending the motor's operational lifespan.

Q: When is this motor most appropriately used?

A: This motor should be employed in industrial scenarios requiring continuous operation (S1 duty), such as pumps, compressors, and conveyor systems, particularly where high efficiency, reliability, and low maintenance are crucial.

Q: Where can this motor be applied given its features?

A: With its high efficiency, corrosion resistance, and IP55 protection, this motor is suitable for factories, processing plants, and machinery environments in India where dust or moisture is present.

Q: What is the process for starting this motor?

A: The motor is designed for Direct On Line (DOL) starting, meaning it can be started directly at rated voltage-415V AC-without the need for a starter, simplifying installation and operation.

Q: How does the high service factor and Class F insulation improve safety and reliability?

A: A service factor of 1.15 allows the motor to handle temporary overloads without damage, while Class F insulation provides higher thermal resistance, reducing the risk of insulation failure and ensuring safe, reliable operation even under harsh conditions.
